Description
Detailed description
The set is suitable for packaging foaming products into bottles.

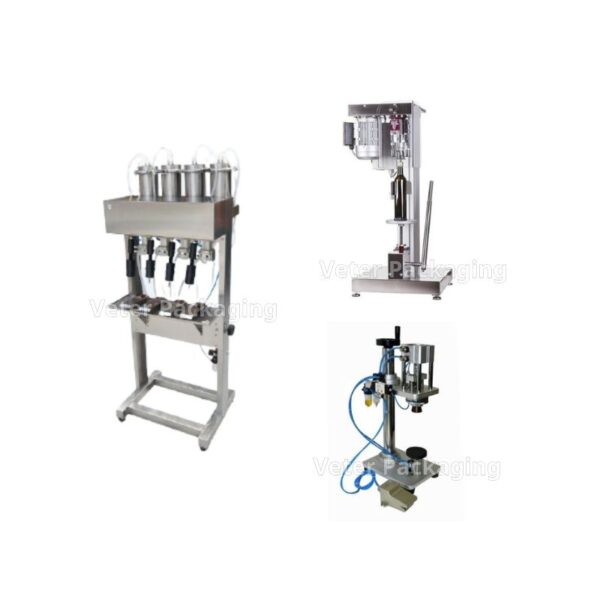

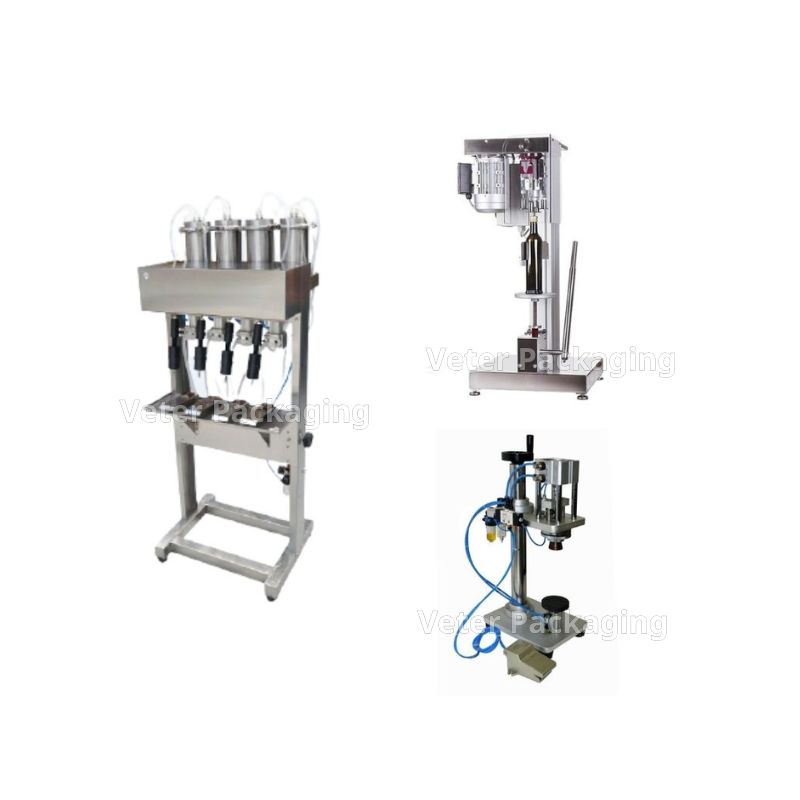

It consists of the following individual machines:

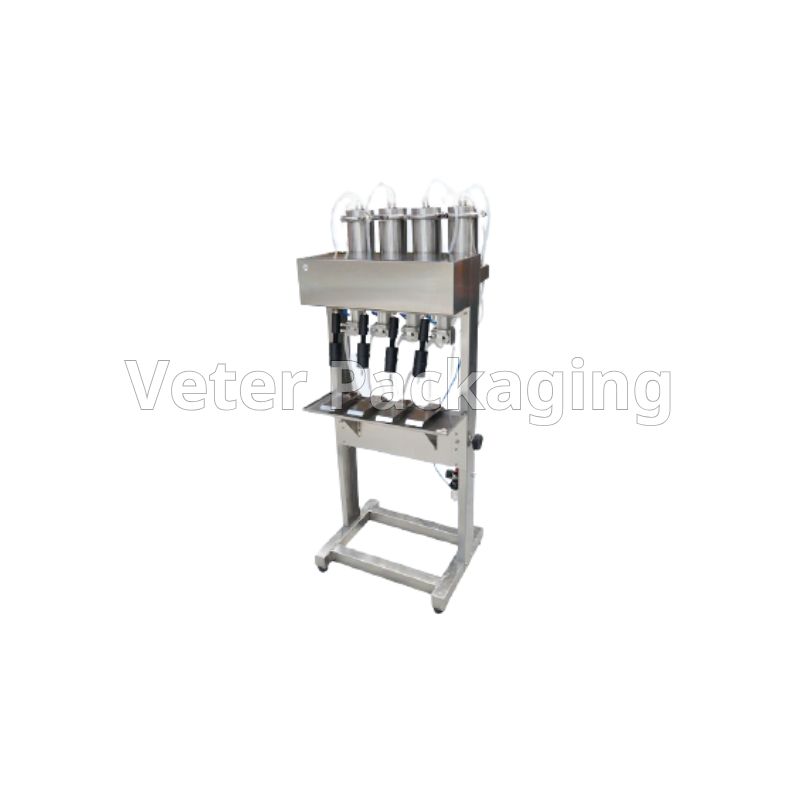

- Semi automatic level filling machine with vacuum, for packging into glass bottles.
- It is made of stainless steel.
- Its operation is pneumatic without the need for the use of electricity, suitable for flammable and explosive materials.
- The adjustment of the required level is quick and easy regardless of the shape and volume of the bottle.

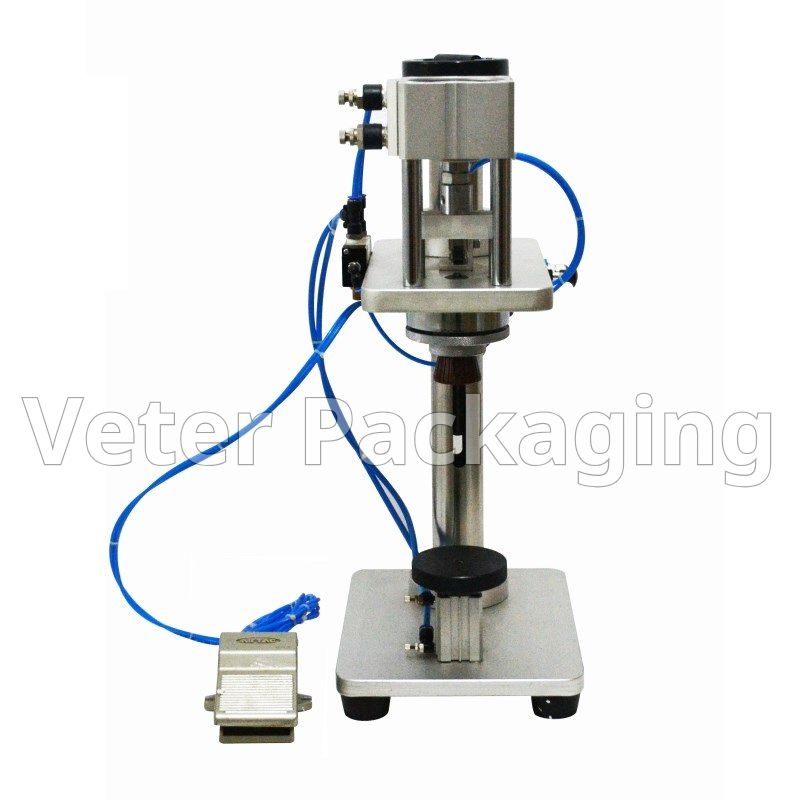

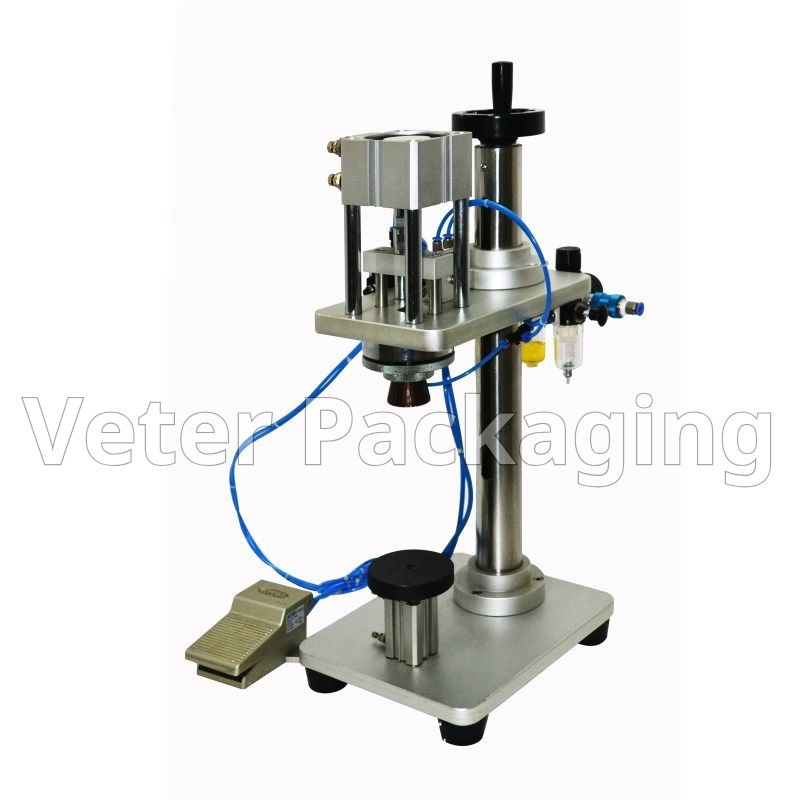

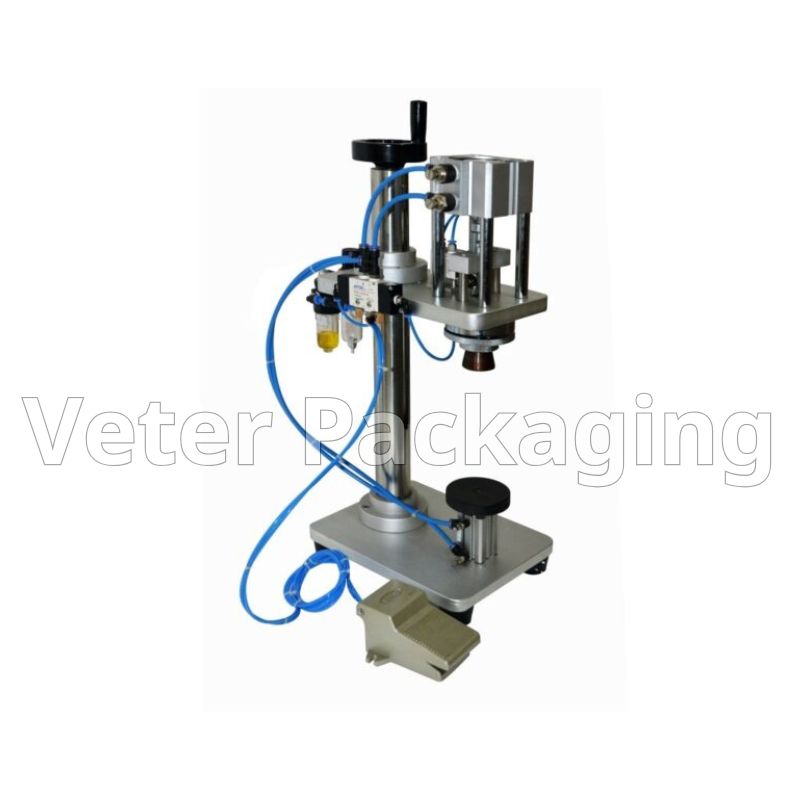

- Semi automatic capping machine pneumatic operation, suitable for spray caps.
-
- It has a system for fixing the cap, with a clamp, placing it firmly in the mouth of the bottle.
- Excellent result in capping quality.
- The pneumatic operation provides a uniform result.

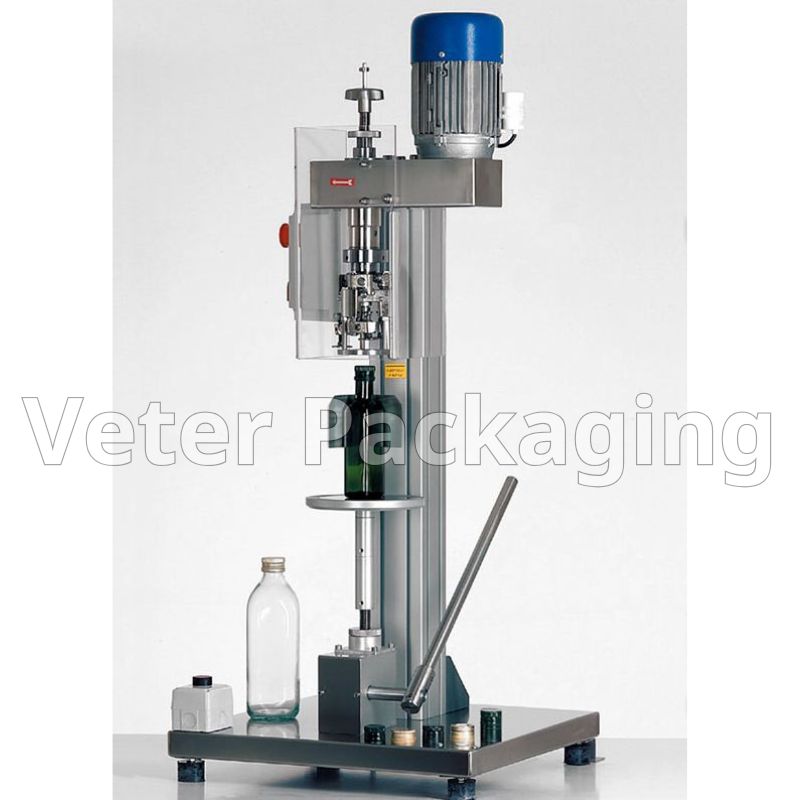

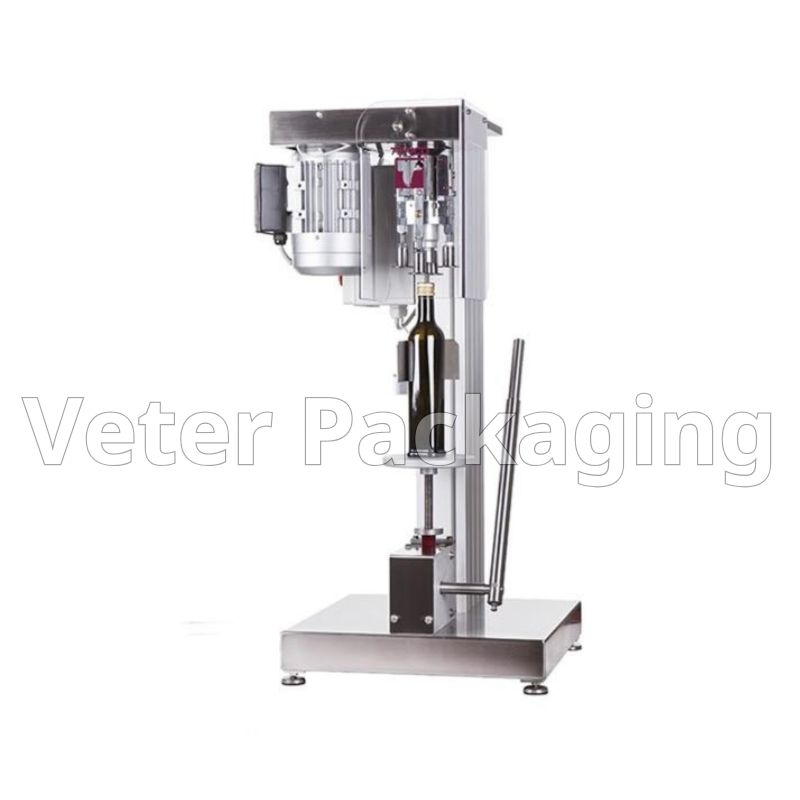

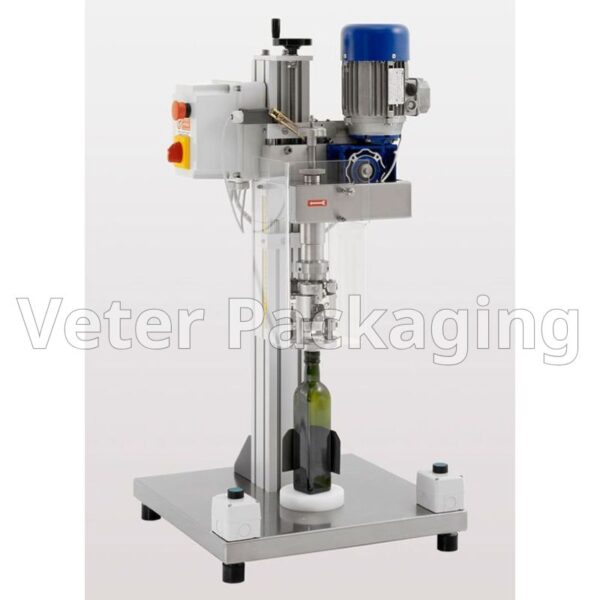

- Semi automatic capping machine for metallic caps of pilferproof PFP, UT type, with or without flow regulator.

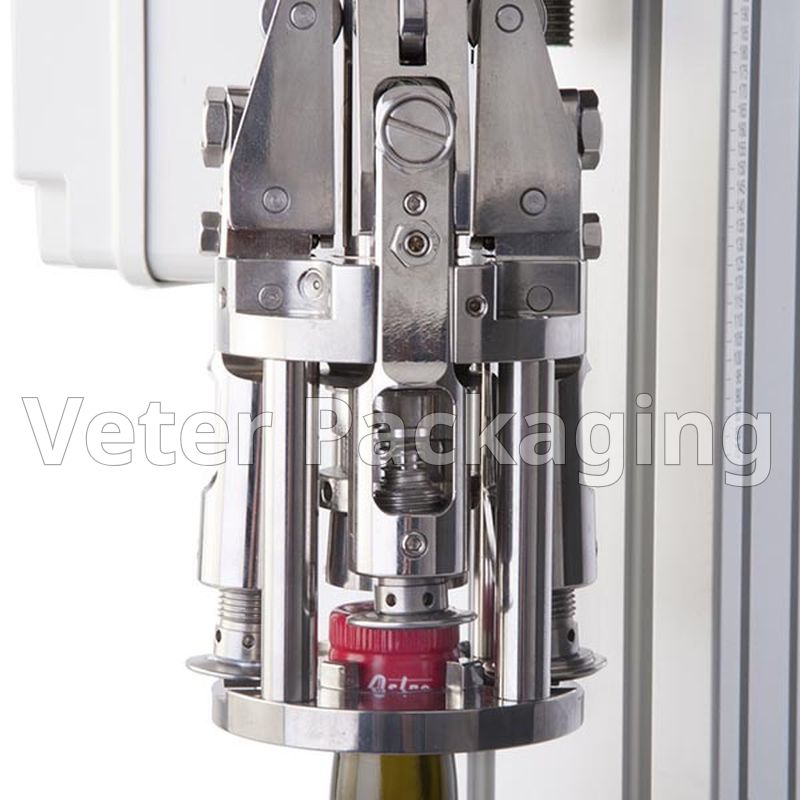

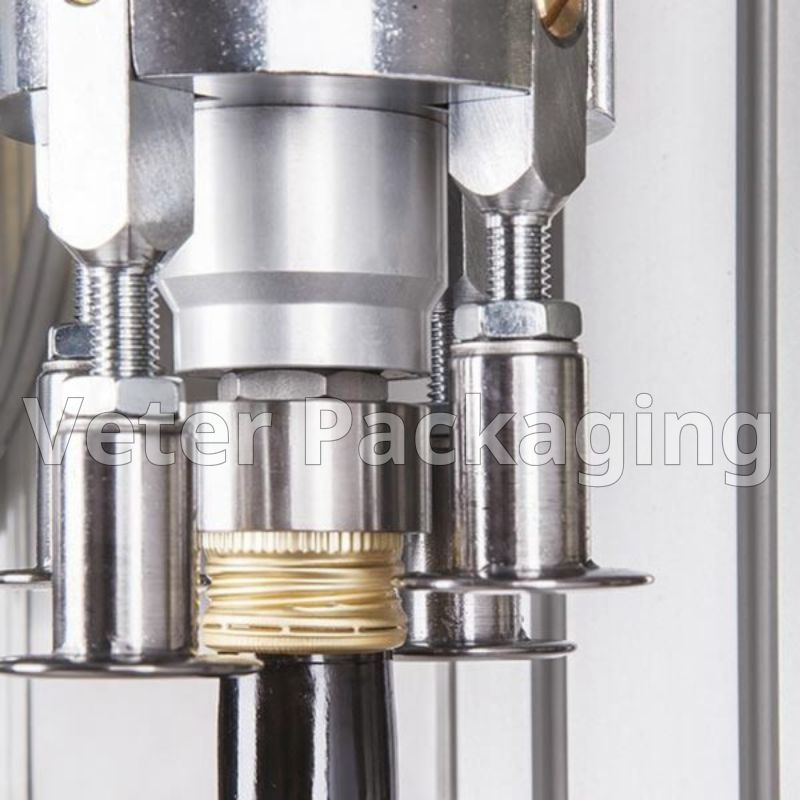

- The capping head may have 3-4 rollers, which creates the safety screw pass of the cap.
- It is possible to raise the bottle to the capping head (with a lever), or to lower the capping head.
Technical specifications
- Voltage: Pneumatic operation
- Filling range: 5-5000ml
- Filling heads: 2 or 4
- Filling accuracy: ≤ 1%
- Bottle mouth diameter: 5-35mm
- Bottle height: ≤ 250mm
- Air pressure: 0.4-0.6MPa
- Air consumption: 0.5m3/min
- Cap diameter: 13-22mm
