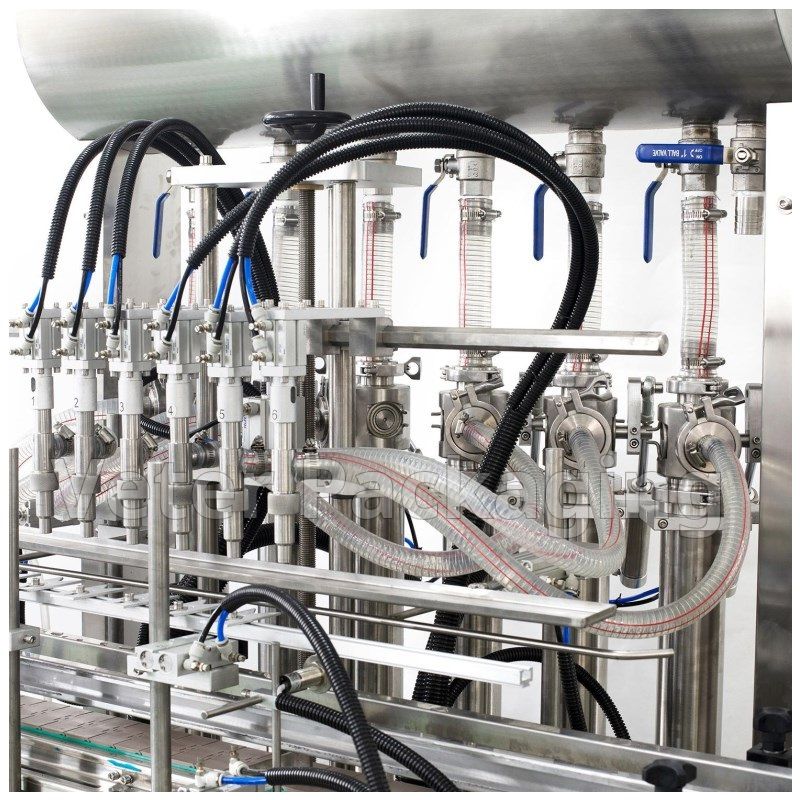

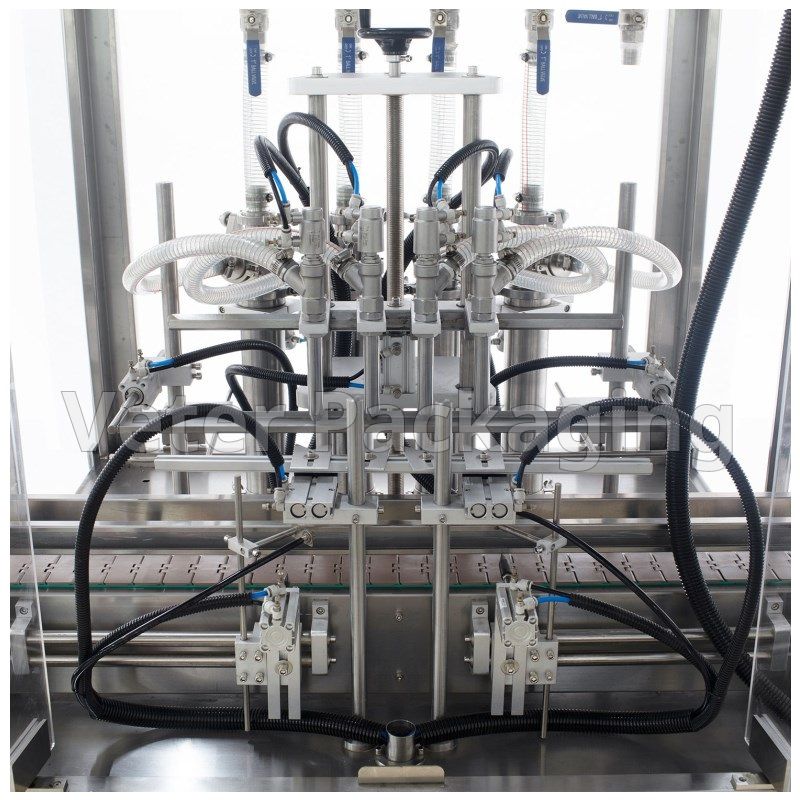

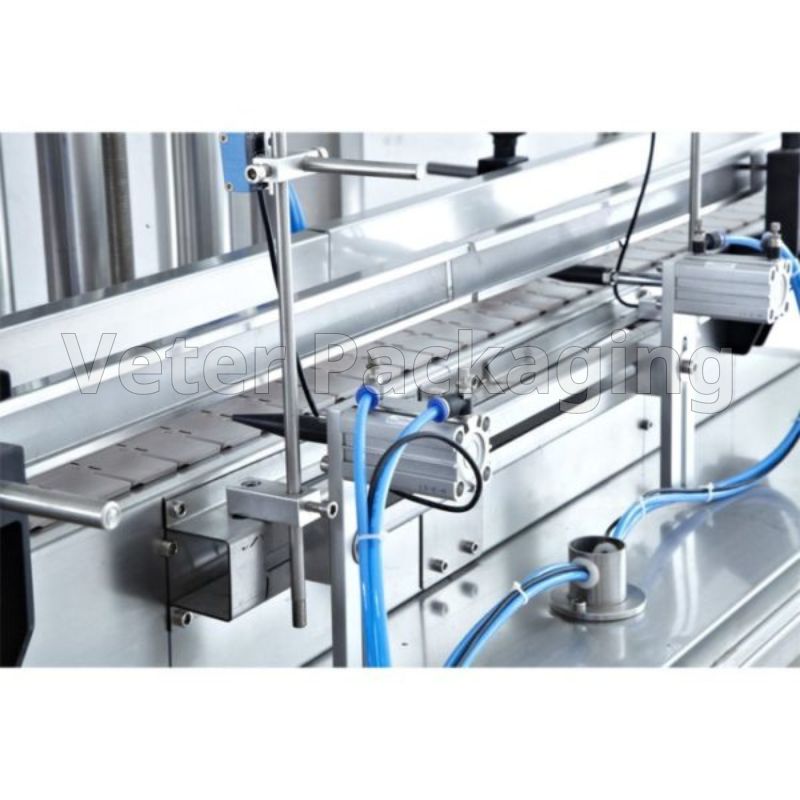

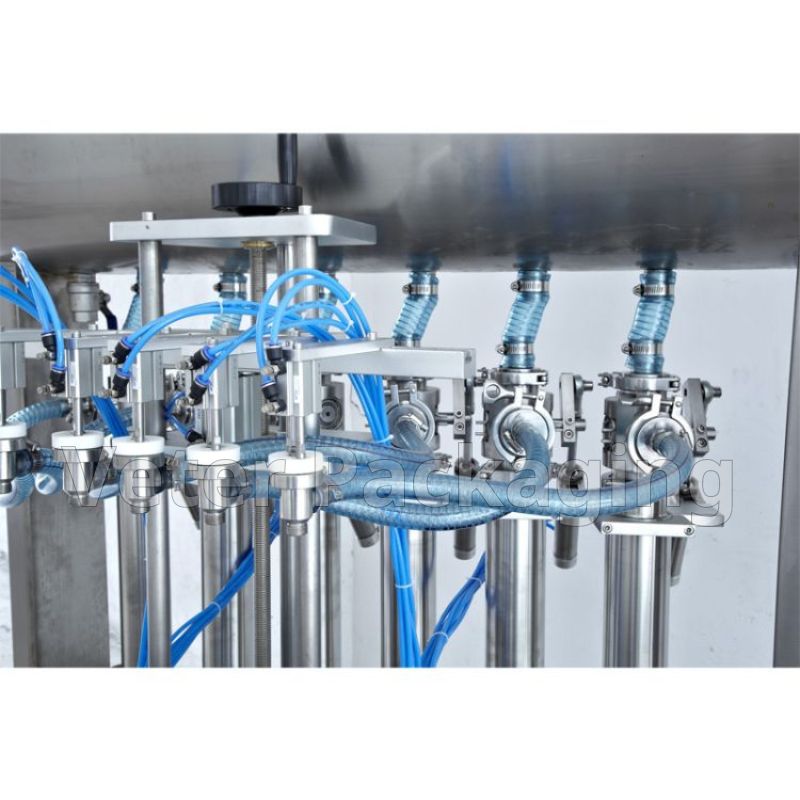

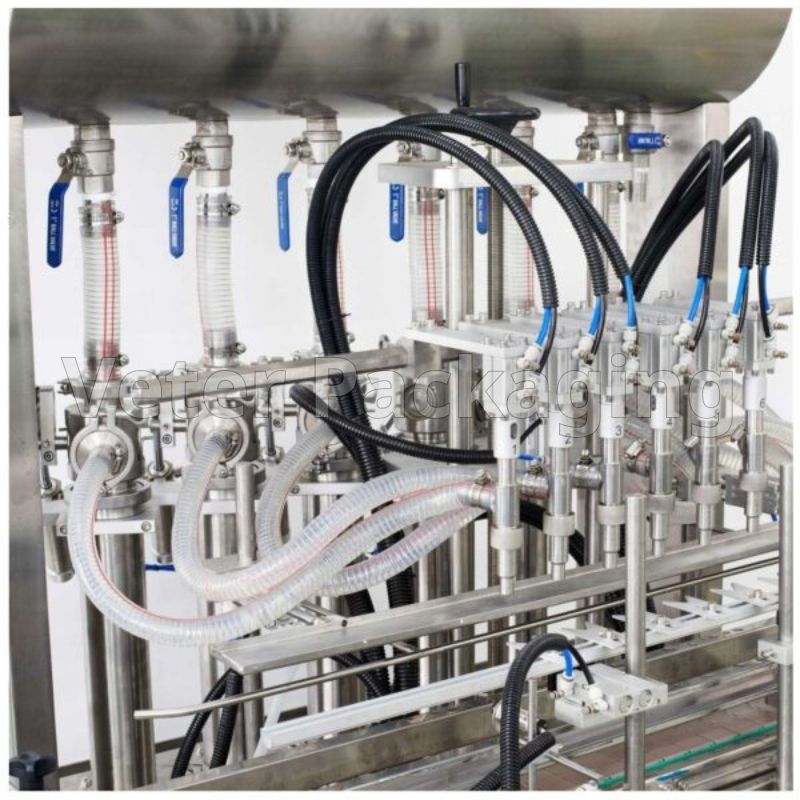

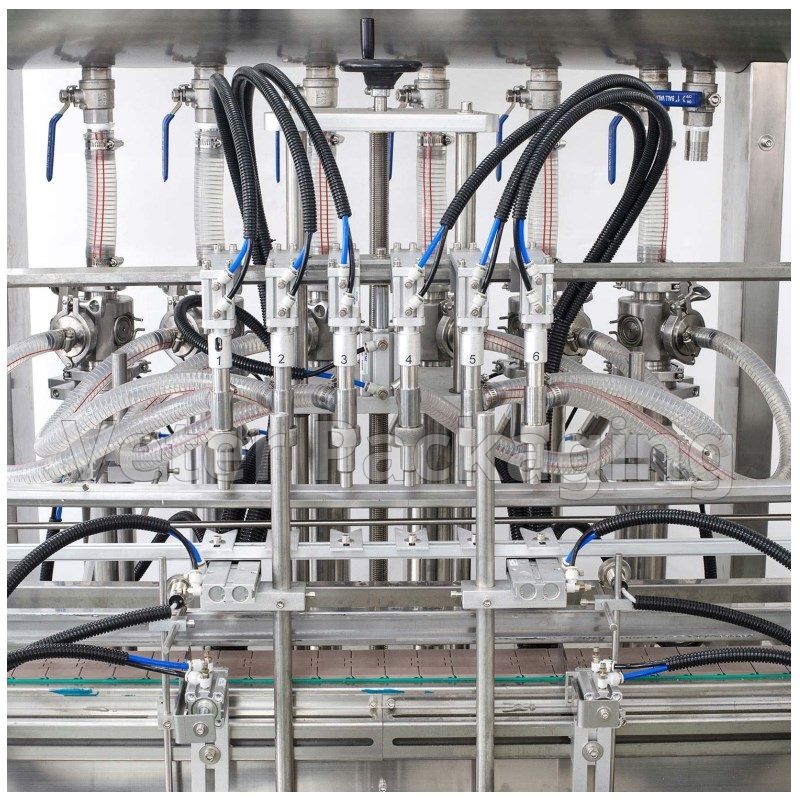

Automatic volumetric filling machine for packaging viscous and semi liquid products, made of stainless steel, with 2m conveyor belt. Suitable for products such as food (milk, arianni, cacao milk, hot filling sauces, marmelade, sesame paste, ketscup, mustard, flavor sirop, olive paste, mayonnaise etch), cosmetics (shower bath, shampoo, face/body creme), olive oil, medicine, chemicals, pesticides κτλ.
- The filling machine has a system of immersing the ΙΝΟΧ filling heads into the bottles at the beginning of the filling and raising while filling, in order to avoid creating foam and succeeding a uniform filling.
- The immersing system operates with a stepper motor for a controlled and highly accurate movement of the filling heads.
- It is easy to operate with PLC touch screen.
- The adjustment of the INOX volumetric filling heads, is made easily and fast and their mode is pneumatic.
- The machine has an ΙΝΟΧ filling tank which supplies the machine, with autοmatic level control sysytem and the possibility of stiring and heating system.
- The machine can be integrated to an automatic packaging line.
- Volumetric INOX filling heads: 2-12
- Voltage: 220V, 380V
- Filling range: 20-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-2000ml, 700-3000ml, 1000-5000ml
- Filling accuracy: +- 1%
- Filling temperature: 5-90ο C
- Productivity: 800-3000 bottles, jars/hour (depending on the number of filling heads)
- Power: 1kW
- Dimensions: 2000*1000*2000mm
