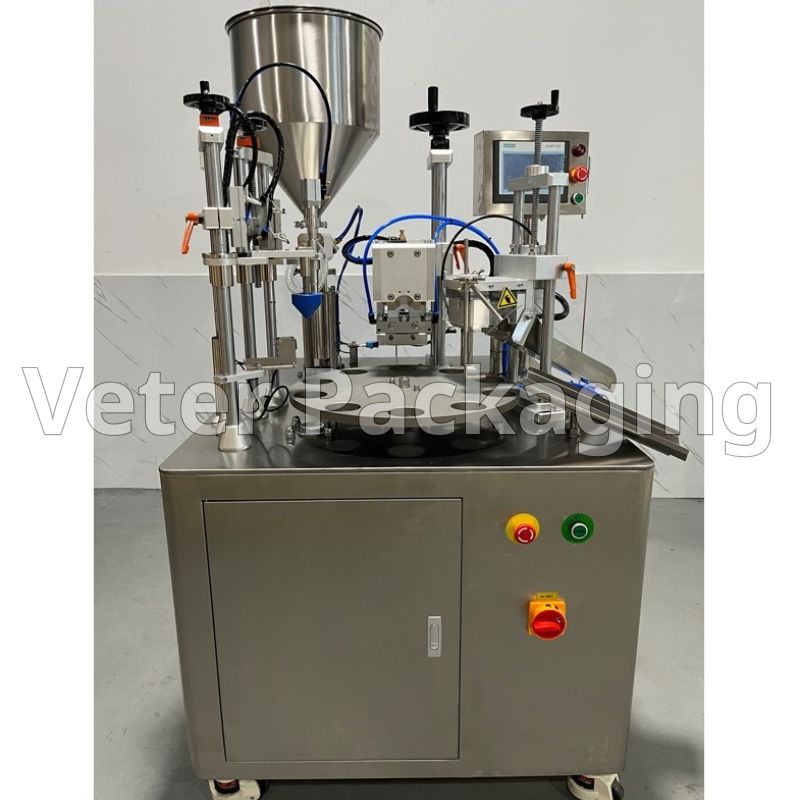

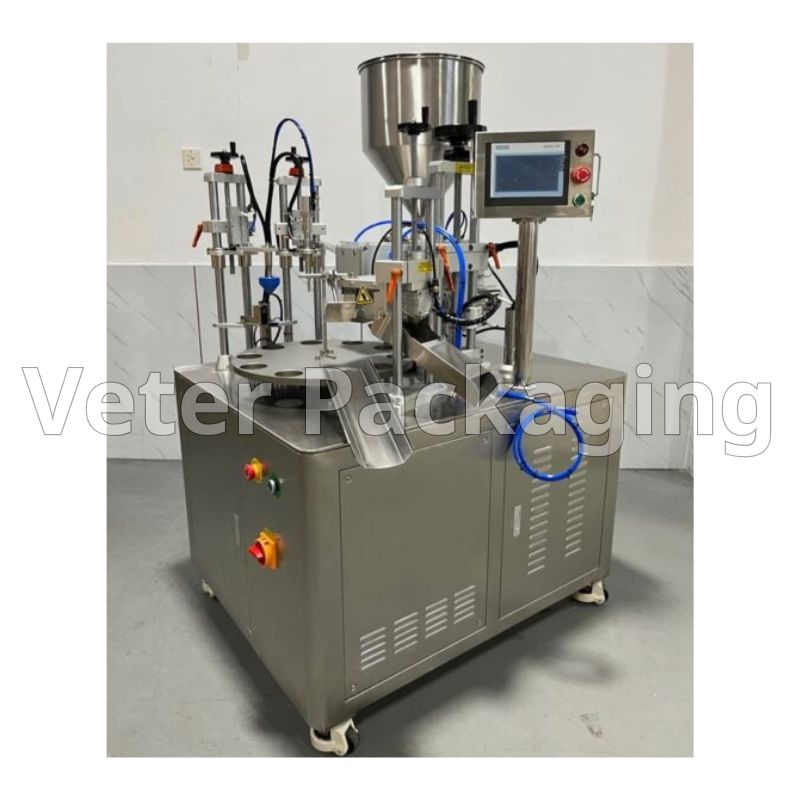

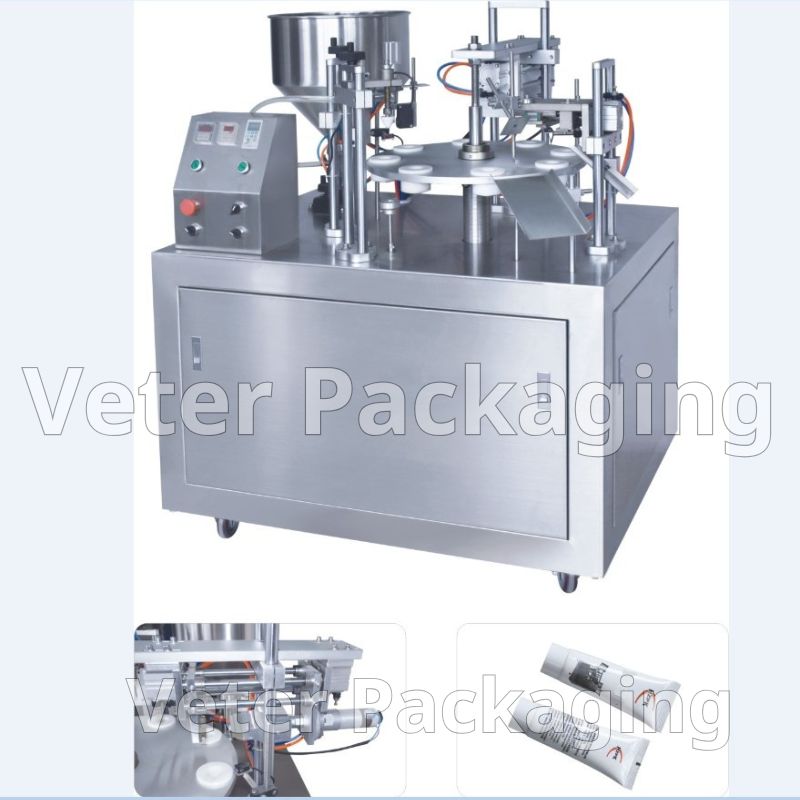

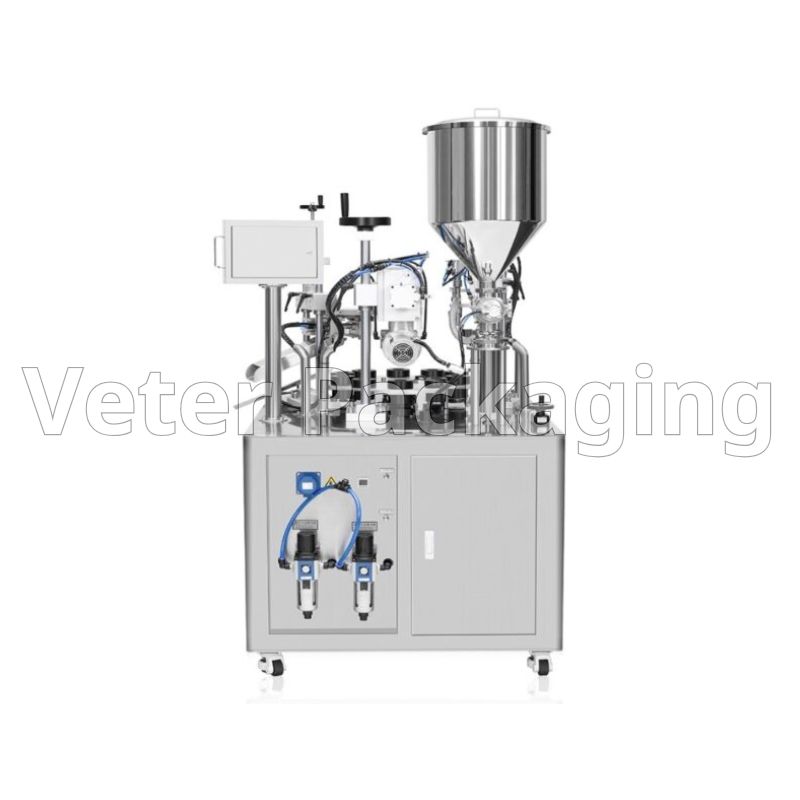

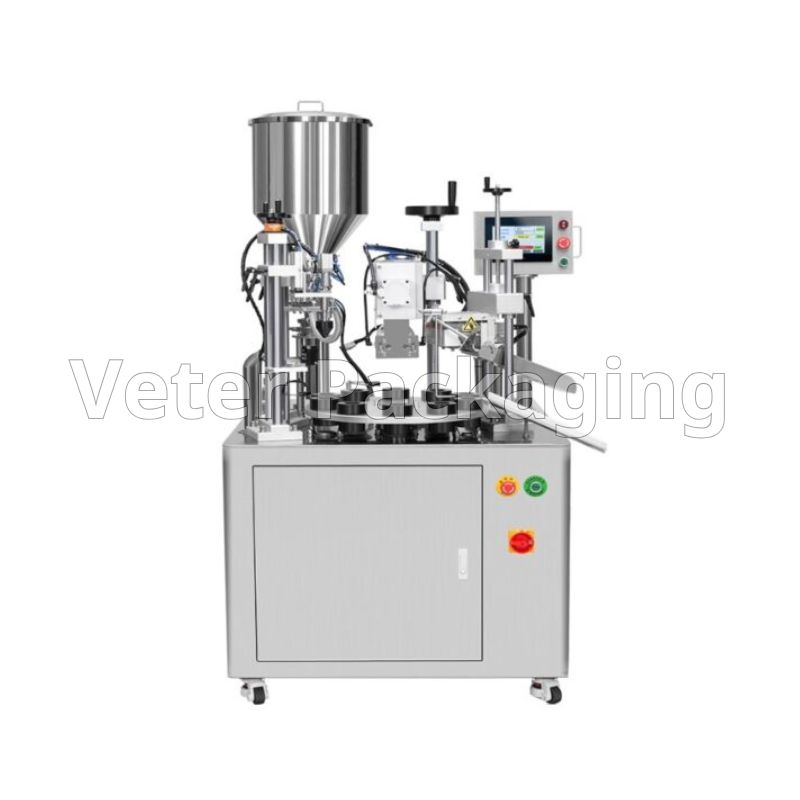

Automatic rotary ultrasonic filling sealing machine for plastic tubes.
The ultrasonic sealing converts the electric current to energy, which is then through rubbing is turned into heat and melts the plastic.
This method has the following advantages, it is environmentally friendly, there is accuracy and homogeneity in the result, and fast performance.

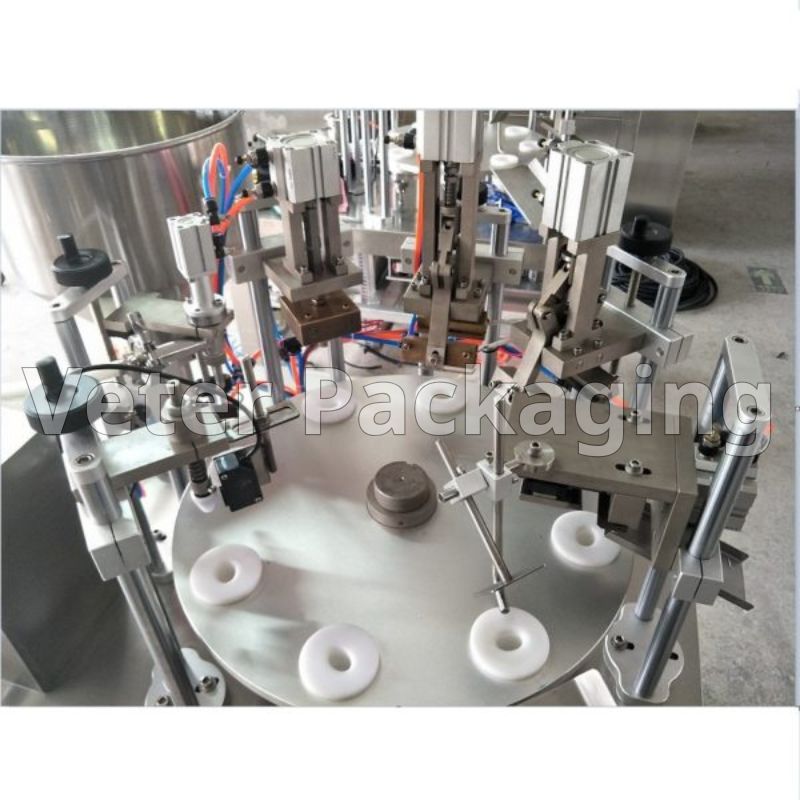

The machine consists of,

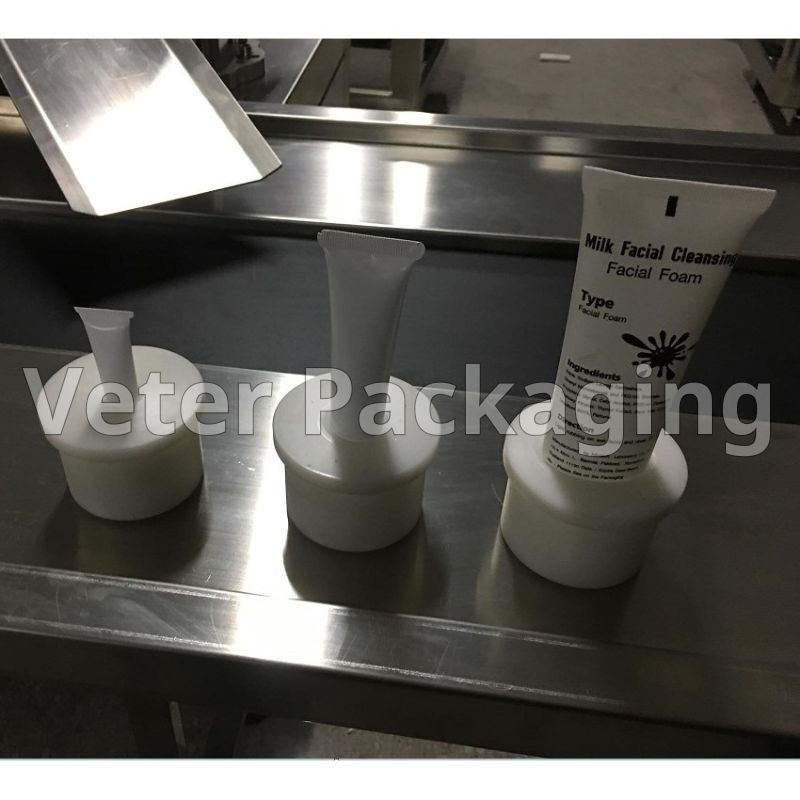

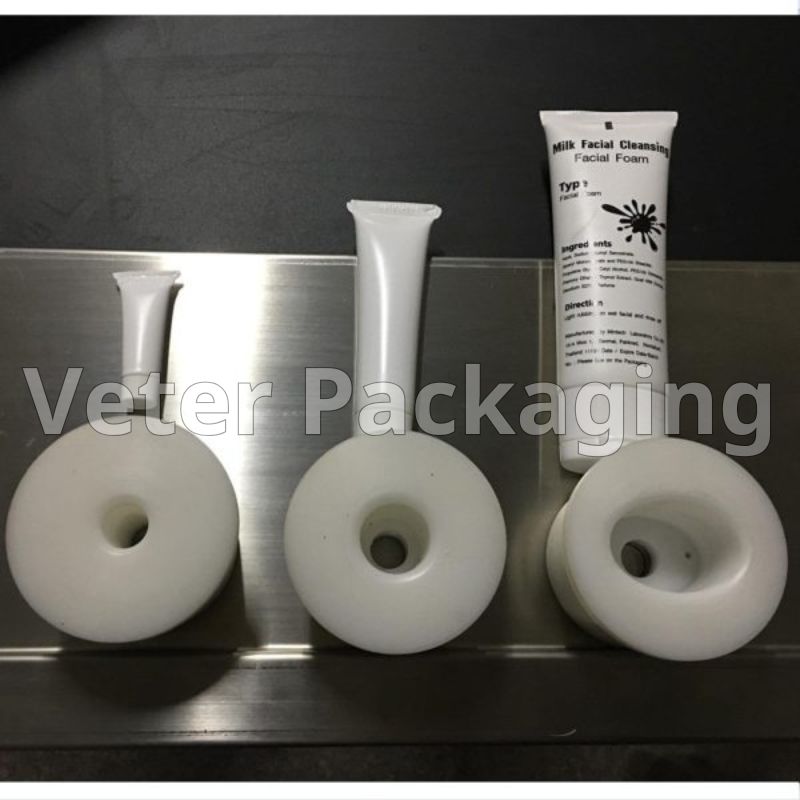

- Tube centering system.
- Automatic volumentric filling system.
- Automatic ultrasonic sealing system.

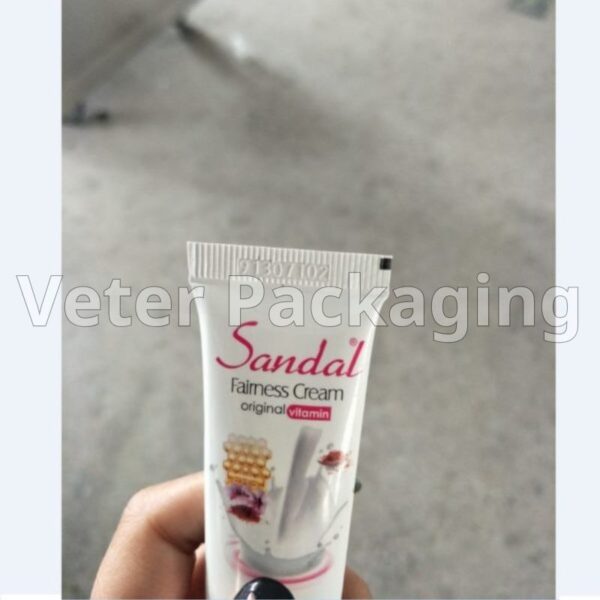

- Ability to place embossed printing.
A heated double-bottomed tank with stirring can be installed as additional equipment.
Easy to install and operate.
- Power: 2ΚW
- Filling range: 3-30ml 6-60ml 10-120ml 25-250ml 50-500ml
- Accuracy: ≦±0.5%
- Tube diameter: Φ10-50mm
- Tank volume: 40L
- Productivity: 1000-1500 tubes/hour
- Air pressure: 0.5-0.7MPa
- Voltage: 220V
- Dimensions: 1300*900*1550mm
- Weight: 320 Kg
