Description
Detailed description

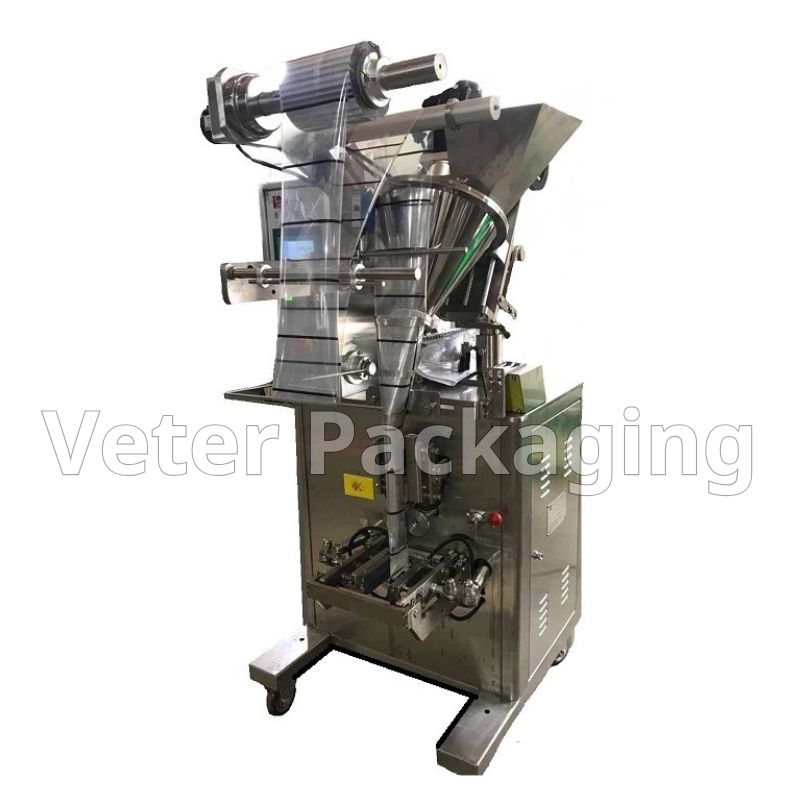

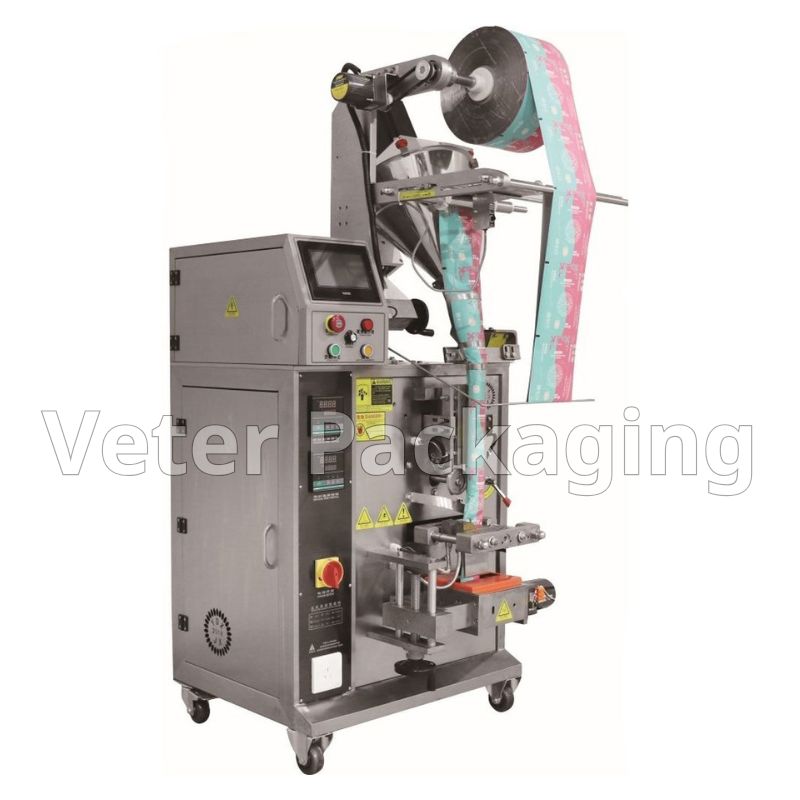

Vertical Flow Pack packaging machine with servo motor for greater accuracy at the filling procedure.
Ideal for products in powder form.
The packaging process includes,
- packaging configuration (cushion, bottom configuration, 3 or 4 sealed sides etc),
- screw filling, and
- printing date-product code from 1-3 lines
The packaging can be of various materials such as PET/plated, AL/PE, PET/PE, paper/PE, naylon, etc.
Technical specifications
- Voltage: 220V
- Power: 1500W or 1900W
- Bag dimensions: H 55-110 / W 30-80mm or H 70-150 / W70-115mm
- Productivity: 35-80 bags/min or 28-60 bags/min.
- Filling accuracy: 5-40 ml or 30-150 ml
- Dimensions: 600 Χ 790 Χ 1780 mm or 700 Χ 800 Χ 1900 mm
- Weight: 350Kgr or 450kg
