Description
Detailed description

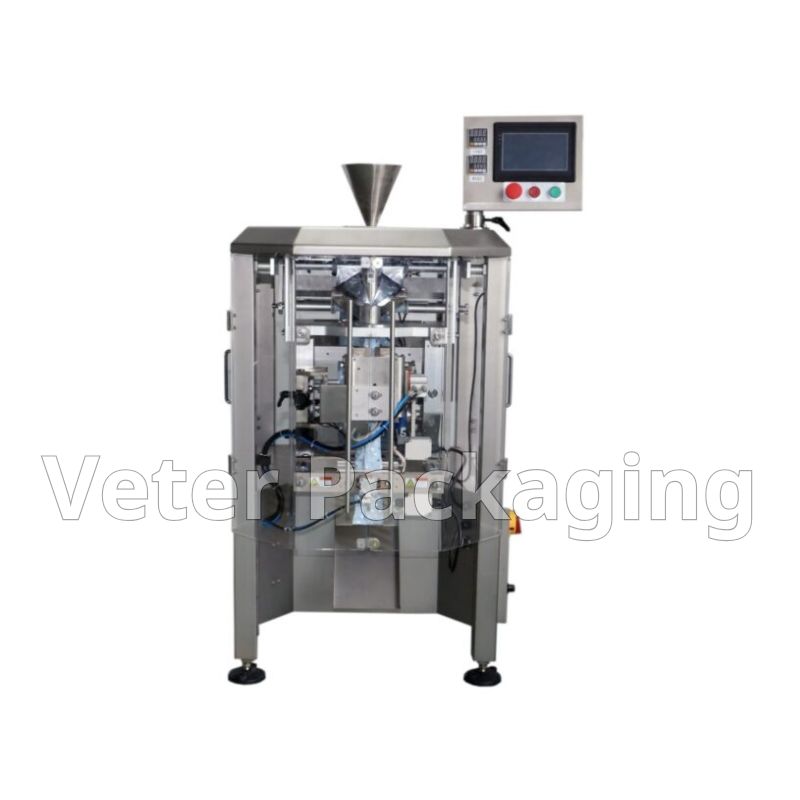

Vertical Flow Pack packaging machine for granular products.
Ideal for food products such as (legums, nuts, coffee, rice, spices, sweets, etc.), chemicals (fertilizers, cleaning products, etc.), pharmaceuticals, small products such as (buttons, screws, etc.) and general products in granular state. The machine has a PLC, Servo motor, touch screen for regulation and operation of the machine. It is made of stainless steel. The packaging material can be PP, PE, PVC, PS, PET, etc.
The packaging process includes

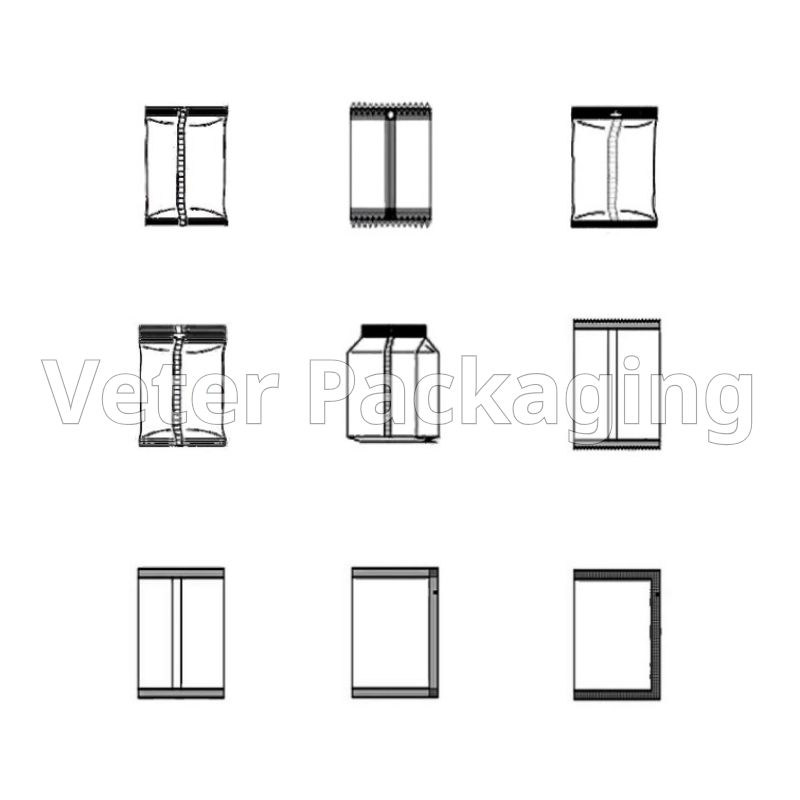

- shaping the package according to the application requirements
- volumetric filling
- printing the date, batch, etc. (optional)
- final sealing of the package.
Additional equipment

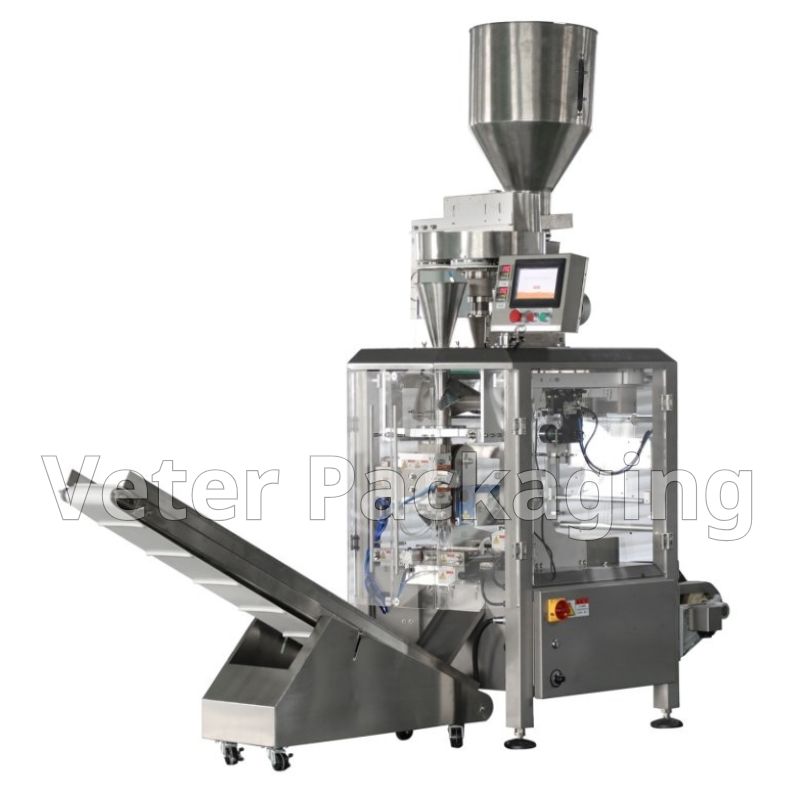

- Ready-made packaging elevator
- Rotary collection table
Technical specifications
- Voltage: 220V
- Power: 2,5KW
- Bag size: L 50-190mm / W 50-150mm
- Film thickness: 0.06-0.12mm
- Film width: 110mm-320mm
- Filling range: 5-500gr
- Dimensions: 1300 Χ 900 Χ 2200 mm
- Weight: 400Kgr
