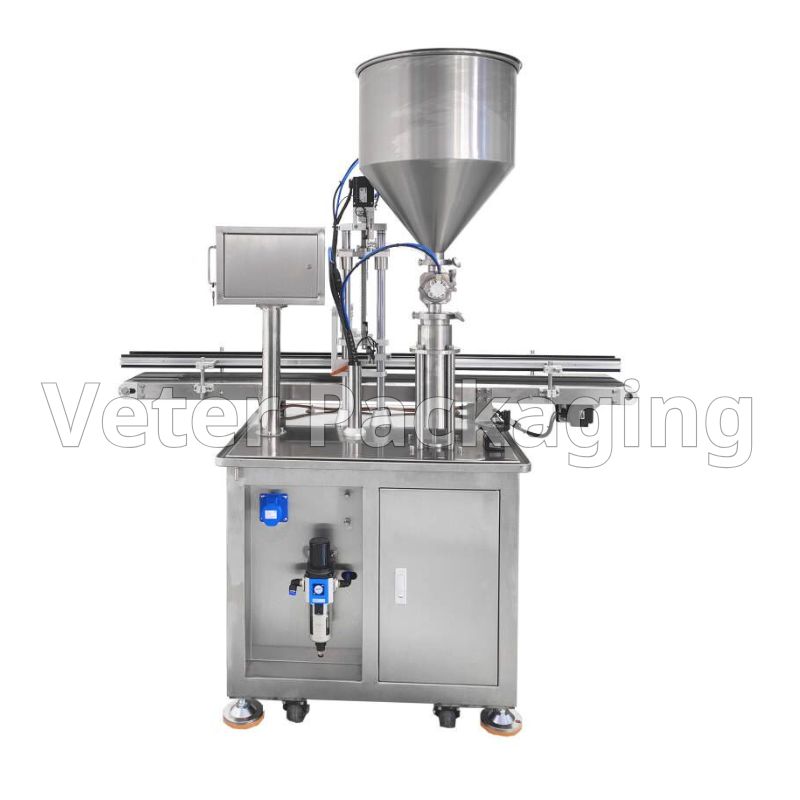

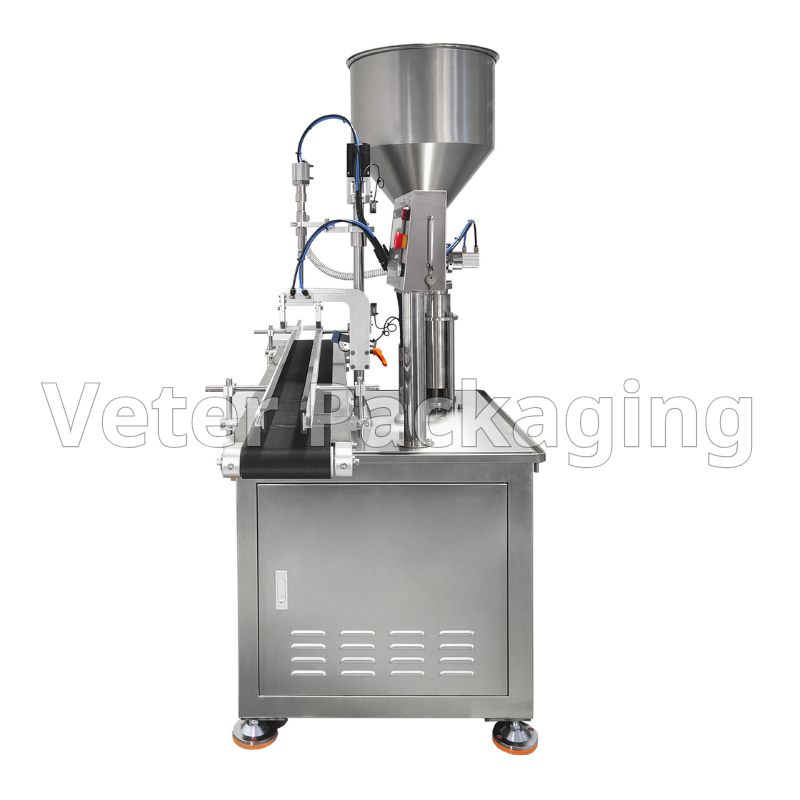

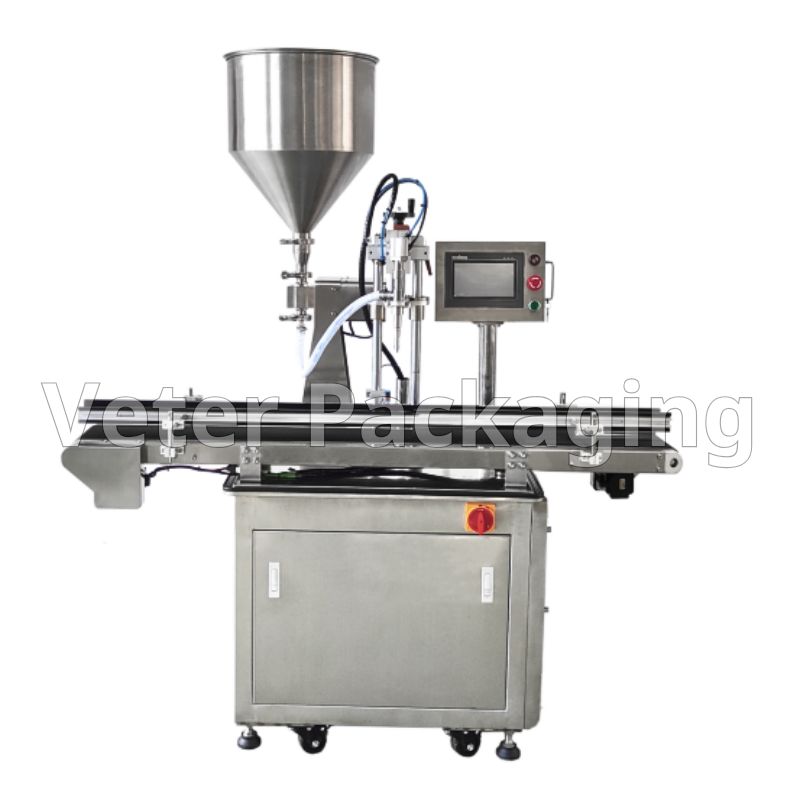

Automatic dosing filling machine for packaging semi viscous and viscous products. The machine is made of stainless steel, with a 2 meter conveyor belt.
Ideal for food (olive oil, seed oils, olive paste, honey, dressings, etc.), chemicals, cosmetics, etc.

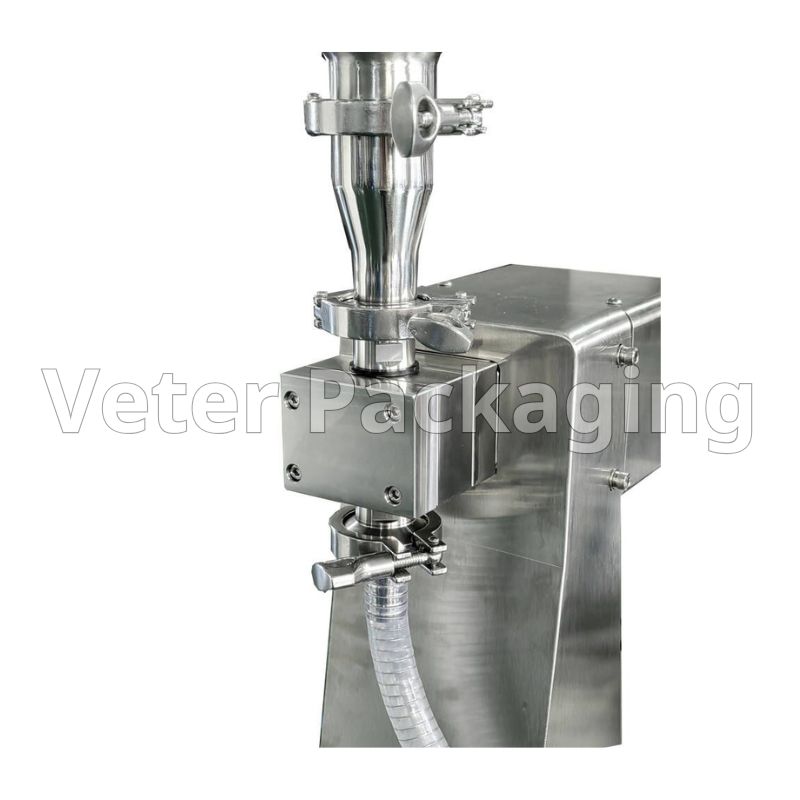

- It has a lobe pump (Rotor pump) with a Servo motor.
- Easy to operate with PLC control system touch screen.
- The advantages of a servo filler are easy dose adjustment, filling speed adjustment.
- It has a stainless steel feed tank, with an automatic level control system and the ability to stir and heat it.
- The machine can be integrated to an automatic packaging line.
- Voltage: 220V
- Filling heads: 1-2
- Filling range: 30-5000ml
- Air pressure: 0.5-0.6 Mpa
- Filling accuracy: ≤ 0.5%
- Productivity: 5-20 containers/min (depends on the container)
- Power: 1000W
- Dimensions: 1600*750*1600m
- Weight: 280kgr
