Description
Detailed description

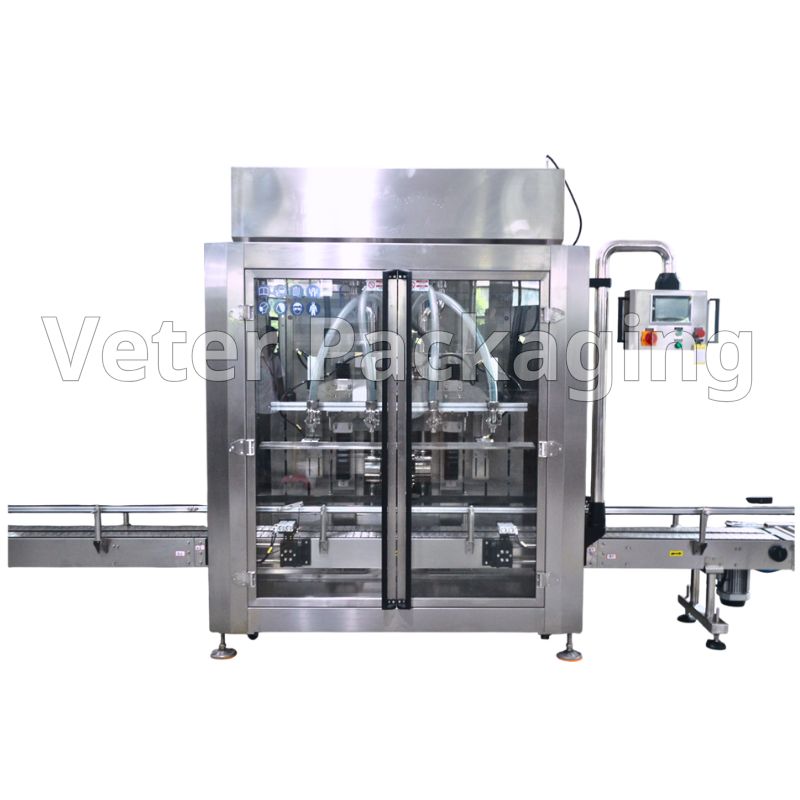

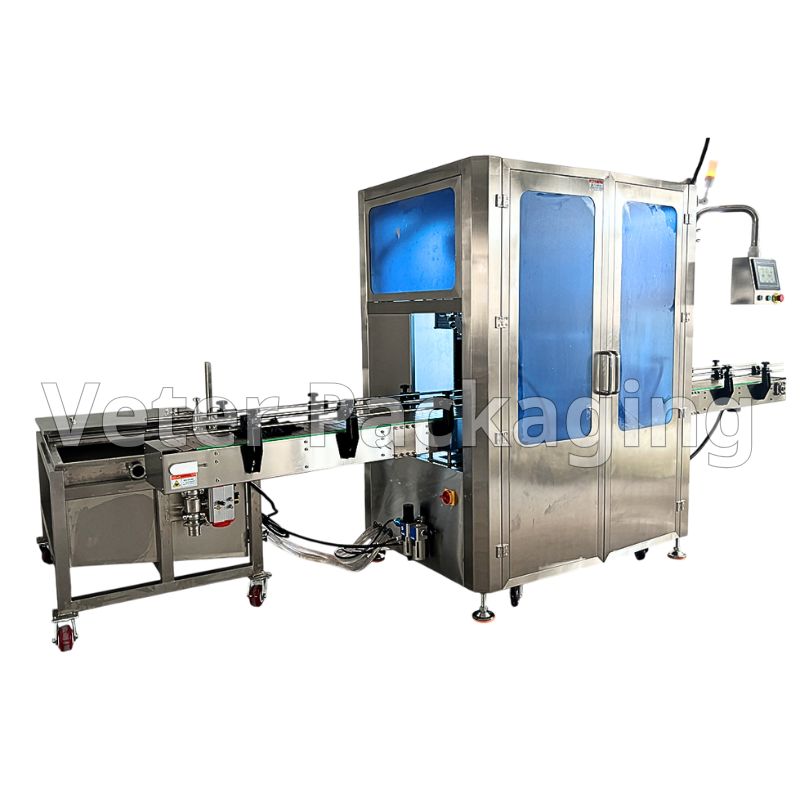

Automatic filling packaging machine for semi-viscous and viscous products, with gear pump and servo motor ensuring greater filling accuracy.
The machine is made of stainless steel, with a 4-meter conveyor belt.
Ideal for products (honey, nut butters, sauces, olive oil, seed oils, olive paste, dressings, detergents, daily care products, shampoos, shower gels, cleaning products, chemicals, etc.) for large professional use containers (canisters / buckets).

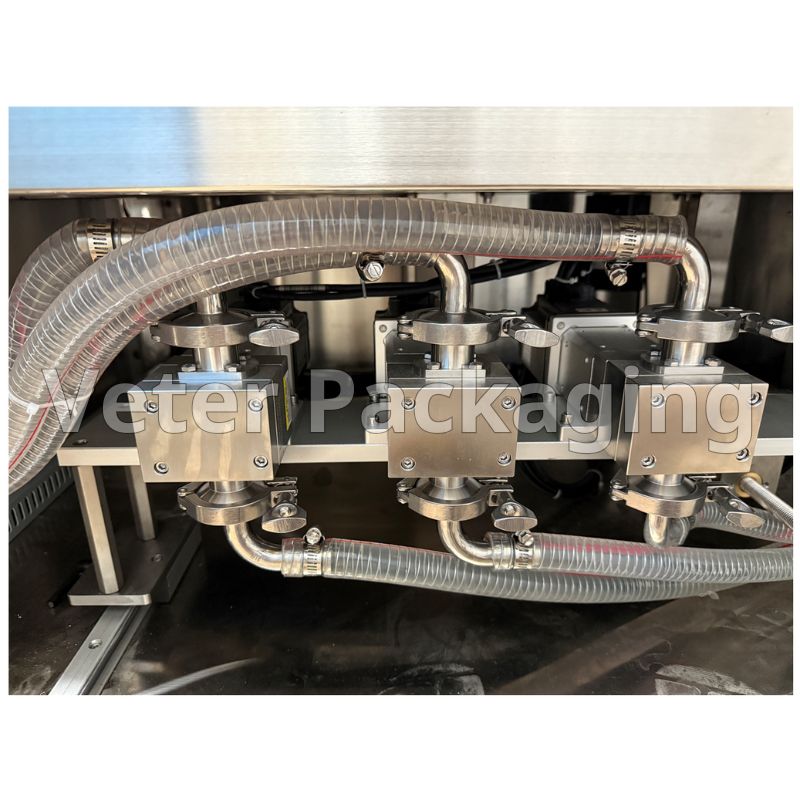

- It has 2-4 gear pumps with a Servo motor.

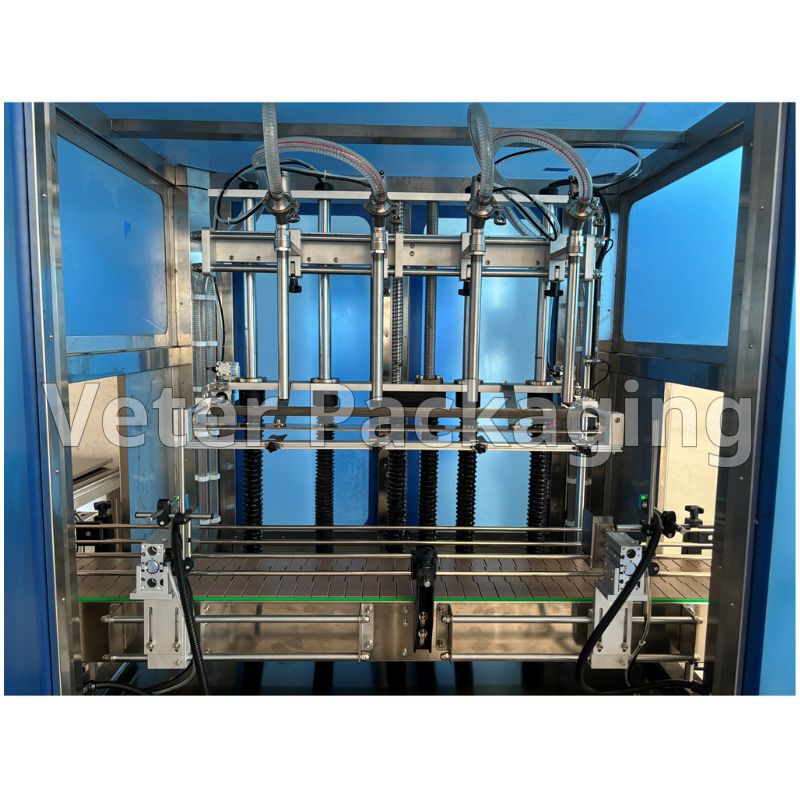

- Diving and lifting system for the heads during filling, achieving a uniform result and minimizing foaming.
- Easy to operate with a touch screen PLC control system.
- The advantages of a servo filler are the easy adjustment of the dose and the filling speed adjustment.
- It has a stainless steel (INOX) supply tank, with an automatic level control system.
The machine can be integrated into a complete packaging line with capping and labelling machine.
Technical specifications
-
- Voltage: 380V
- Filling heads: 2-4
- Motor: Servo
- Filling range: 5-30L
- Air pressure: 0.6-0.8Mpa
- Filling accuracy: ≤ 1% (depending on the filling quantity and the product)
- Production capacity: 1-3 doses/minute (depending on the product)
- Power: 2000W

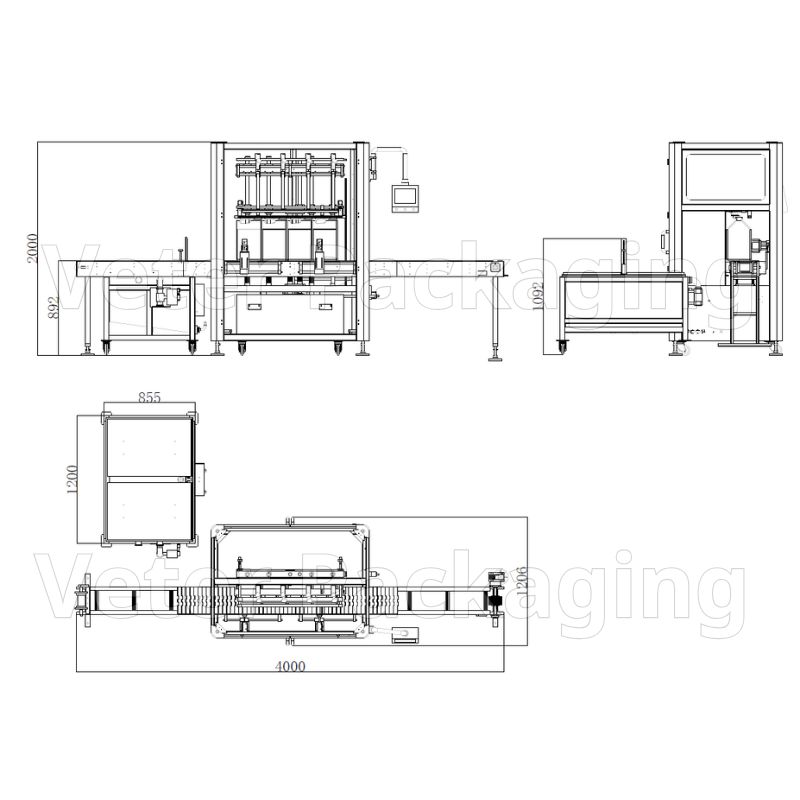

- Dimensions: 4000*1300*2000mm
- Weight: 600kgr
